Kronos Audio | Helena
Bracci Lettura Serie Tornearms

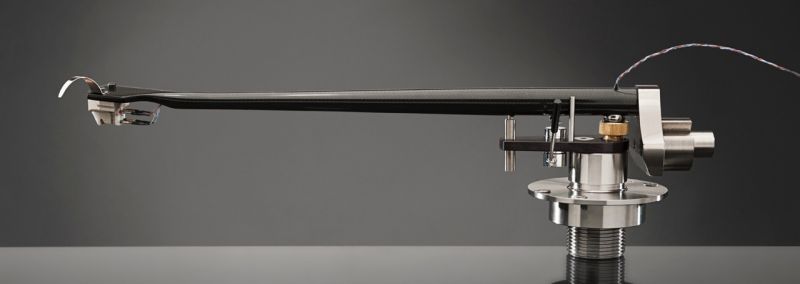

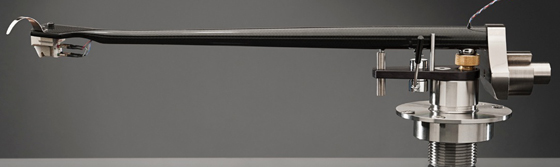

Braccio dritto da 10,5" a doppio modulo in composito di fibra di carbonio. Massa media. Alzabraccio a smorzamento idraulico. Compatibile con testine di peso da 7 a 16gr. Regolazione VTA. Regolazione azimuth.
Altre caratteristiche
-
Shipping weight: 3kg
-
Shipping dimensions: 43×14.5×11.5 cm
-
Effective lenght: 266.7 mm
-
Effective mass: medium
-
Overhang: 15.4 mm
-
Pivot to spindle distance: 294.8 mm
-
Maximum tracking error: 0.0159
-
Measured resonant frequency (9 grams, 15 units of compliance test cartridge): 9.5 hertz
-
Cartridge weight compatibility: 7 to 16 grams
-
VTA adjustments: coarse and fine up to 1 inch
-
Azimuth adjustment: coarse and fine
-
Bearing type: proprietary ball and spherical mirror uni-pivot.
-
Arm tube characteristics: double wall high modulus carbon fiber composite.
-
Outer shell: 3k 50t fibers, variable thickness an fiber orientations.
-
Inner tube: uni-directional fibers. Selected wood fairings between the tubes. Hand polished cellulosic lacquer finish.
-
Arm lift: hydraulic dampened
